Outdoor Particulate Matter Sensing Solution

Product0

Get the Products

Table Overview for Cubic Outdoor Series Particulate Matter Sensors

Model Number	Output	Measurement range	Communication	Reference Instrument	Configuration	Accessary
Industrial High Concentration Dust Sensor PM3003Q PM3003Q	PM2.5, PM10, TSP @ μg/m?	0~1,000,000μg/m?	UART_TTL	TSI 8533	PM Sensor:? Sampling struction: None	Flow Sensor: ? Gasboard-8500FS-L40 Pump: ?	Specifications Features Measurement range 0~1,000,000μg/m? Communication UART_TTL Reference Instrument TSI 8533 Configuration PM Sensor:? Sampling struction: None
Outdoor Laser Particulate Matter Sensor Module PM3003S PM3003S	PM1.0, PM2.5, PM4.25(optional), PM10 and TSP @μg/m?	0~30,000μg/m?	UART_TTL/I?C	Met One BAM-1020	PM Sensor: ? Sampling Struction: None	Heater: ? PMHT01 Flow Sensor: ? Gasboard-7500H-OPC Pump: ?	Specifications Features Measurement range 0~30,000μg/m? Communication UART_TTL/I?C Reference Instrument Met One BAM-1020 Configuration PM Sensor: ? Sampling Struction: None
Outdoor Laser Particulate Sensor Module with Sampling Fan PM3006S PM3006S	PM1.0, PM2.5, PM10, TSP @ μg/m?	0~30,000μg/m?	UART_TTL/I?C	Grimm 11-A	PM Sensor:? Sampling struction: ? Fan	Heater: ? PMHT01 Flow sensor: ? Gasboard-7500H-OPC	Specifications Features Measurement range 0~30,000μg/m? Communication UART_TTL/I?C Reference Instrument Grimm 11-A Configuration PM Sensor:? Sampling struction: ? Fan
Online Outdoor Dust Monitor OPM-6303M OPM-6303M	PM1.0, PM2.5, PM4.25(optional), PM10 and TSP @μg/m?	0~30,000μg/m?	RS485 ModBus	Met One BAM-1020	PM Sensor: ? Sampling struction: ? Pump Other configuration: ? Heater; Flow sensor	/	Specifications Features Measurement range 0~30,000μg/m? Communication RS485 ModBus Reference Instrument Met One BAM-1020 Configuration PM Sensor: ? Sampling struction: ? Pump Other configuration: ? Heater; Flow sensor

Outdoor Particulate Matter Sensing Solution

Industrial-grade Online Dust Concentration Monitor
OPM-6303Q

OPM-6303Q

Industrial Laser Particle Monitor: Real-time PM2.5/PM10/TSP (0-1000 mg/m?). Anti-dust design, -30°C~70°C operation & stable flow for harsh outdoor environments. Modbus RS485 remote monitoring.

Learn more

Specifications Features

Working Principle

Light scattering

Measurement Range

0~50mg/m? (Maximum display 1,000mg/m?)

Accuracy

0~1 mg /m?: ±200μg/m?
1~50 mg/m?: ±20% of reading
25±2℃, 50±10%RH

Time to First Reading

≤ 8s
- Light scattering technology with an industrial-grade laser for reliable and accurate particle detection.
- Real-time measurements of PM2.5, PM10, and TSP within a range of 0 to 1000 mg/m?.
- Stable sampling flow for consistent performance in complex outdoor environment.
- Anti-dust design, suitable for high dust concentration environment.
- Wide working temperature -30℃~70℃, suitable for extreme weather environment.
- Modbus RS485 communication for online remote monitoring.
Industrial High Concentration Dust Sensor PM3003Q

PM3003Q

PM3003Q is a dust sensor which suits for industrial high particulate concentration applications like iron plants, thermal power plants, coking plants, cement plants, mineral industry, flour mills, etc.

Learn more

Specifications Features

Operating principle

Laser scattering

Measurement range

0~50mg/m? Maximum display 1000mg/m?

Output channels

PM2.5, PM10 and TSP

Accuracy

0~1 mg /m?: ±200μg/m?
1~50 mg/m?: ±20% of reading
(Test under typical working conditions, 25±2℃, 50±10%RH, with TSI8533 as the reference)
- 3 channels concentration output PM2.5, PM10 and TSP in μg/m?
- Industrial grade laser diode with high reliability particle identification
- Anti dust design, suitable for high dust concentration environment
- Compact size and easy for installation

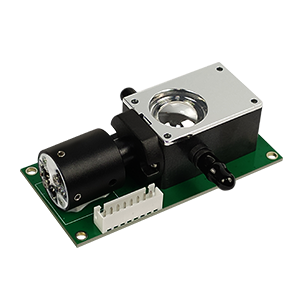

Outdoor Laser Particulate Matter Sensor Module PM3003S

PM3003S

Outdoor PM sensor PM3003S can output PM1.0, PM2.5, PM4.25(optional), PM10 and TSP in μg/m?. Compact size makes it flesible for further product development.

Learn more

Specifications Features

Operating principle

Laser scattering

Measurement range

0~30,000μg/m?

Accuracy

PM10: ≤100μg/m?: ±15μg/m?, 100~1000μg/m?: ±15%Reading
TSP (Note 1): ≤100μg/m?: ±20μg/m?, 100~1000μg/m?: ±20%Reading
Condition: 0℃~40℃, 50±10%RH, calibration instrument: Met One

Time to first reading

≤ 8s
- Concentration output PM1.0, PM2.5, PM4.25(optional), PM10 and TSP in μg/m?
- High power industrial grade linear laser, accurate identification
- Flexible to have a pump for sampling
- Cubic API technology for intelligent dust source identification
- Wide working temperature -30℃~70℃, suitable for outdoor working environment
- With voltage regulator design and EMC compatibility, strong antistatic ability
Outdoor Laser Particulate Sensor Module with Sampling Fan PM3006S

PM3006S

Outdoor particulate matter sensor PM3006S can output TSP, PM10, PM2.5 and PM1.0. With PM1.0. It can work and perform well in harsh nature environment.

Learn more

Specifications Features

Operating principle

Laser scattering

Measurement range

0~30,000μg/m?

Accuracy

PM1.0/PM2.5:<50ug/m?: ±5μg/m?;50~1000μg/m?: ±10%
PM10: ≤100μg/m?: ±15μg/m?, 100~1000μg/m?: ±15%Reading
TSP (Note 1): ≤100μg/m?: ±20μg/m?, 100~1000μg/m?: ±20%Reading
Condition: -30℃~70℃, 50±10%RH, calibration instrument: Grimm

Data refresh time

1 second
- 4 channels concentration output PM1.0, PM2.5, PM10 and TSP in μg/m?
- High power industrial grade linear laser, accurate identification
- Vehicle-grade constant current sampling structure fan, ensure constant stable sampling flow
- Cubic API technology for intelligent dust source identification
- Wide working temperature -30℃~70℃, suitable for outdoor working environment
- With voltage regulator design and EMC compatibility, strong antistatic ability.
Online Outdoor Dust Monitor
OPM-6303M

OPM-6303M

Outdoor particle monitor OPM-6303M can output PM1.0, PM2.5, PM4.25(optional), PM10 and TSP. Built flow sensor and heater have it achieves perfect performance in extreme weather.

Learn more

Specifications Features

Operating principle

Laser scattering

Measurement range

0~30,000μg/m?

Accuracy

PM1.0/PM2.5: ≤100ug/m?: ±10μg/m?, 100~1000μg/m?: ±10%reading
PM10: ≤100μg/m?: ±15μg/m?, 100~1000μg/m?: ±15%Reading
TSP (Note 1): ≤100μg/m?: ±20μg/m?, 100~1000μg/m?: ±20%Reading
Condition: 0℃~40℃, 50±10%RH, calibration instrument: Met One

Time to first reading

≤ 8s
- 5 in 1 integrated particulate monitor with heater, dust sensor, filter, flow sensor and pump
- Concentration measurement of PM1.0, PM2.5, PM4.25(optional), PM10 and TSP.
- Linear correlation with β rays R? >0.9
- Built-in high power industrial grade linear laser, accurate identification
- Built-in pump and flow sensor for constant stable sampling
- Built-in constant temperature pretreatment, suitable for high humidity environment
- Cubic API technology for intelligent dust source identification and accurately measurement
- Wide working temperature -30℃~70℃, suitable for extreme weather environment
- Modbus RS485 output for online remote monitoring
Heating and Dehumidifying Apparatus
PMHT01

PMHT01

Heating and water mist remove device PMHT01 is an important accessory for outdoor particle sensor to avoid droplet to effect dust measurement value.

Learn more

Specifications Features

Heating stabilization time

≤5min (Condition: 25℃)

Heating temperature range

40~60℃ (45℃ as default)

Working condition

-30~70℃, ≤99.9%RH

Storage condition

-40~85℃,0~95%RH (non-condensing)
- Different heating temperature can be set
- Precise monitoring data on tube temperature, real-time temperature control
- Uniform heat conduction, slight influence by ambient temperature
- All-metal built, simple structure, easy to install
0~20LPM Ultrasonic Gas Flow Sensor
Gasboard-7500K-OAQ

Gasboard-7500K-OAQ

Cubic ultrasonic flow sensor Gasboard-7500K-OAQ is an economical gas sensor used to detect gas flow for OAQ application with longer span life more than 5 years.

Learn more

Specifications Features

Detect Principle

Ultrasonic Technology

Detection Range

0~20L/min

Detection Accuracy

±3% or ±0.3L/min (Condition:5~45 ℃)

Resolution

0.01L/min
- Measure Flow Rate of Binary Gas
- Full Scale Matrix Temperature and Humidity Compensation
- Small size, Quick response, Stable, High Accuracy
- Long Lifespan, Self-calibration, Maintenance-free
- RoHS, REACH, CMC, EMC, CE Certificated
